| Specifications | Measures (Yagi Optimizer file) |
|
|---|---|---|
| Frequency | 144 MHz | 32JXX2 144.000 144.400 144.800 MHz 16 elements,millimeters 5.0000
0.0000 512.5000
344.0000 497.5000
531.0000 484.0000
897.0000 473.5000
1378.0000 465.0000
1850.0000 458.0000
2433.0000 458.0000
3088.0000 453.0000
3736.0000 442.0000
4371.0000 443.0000
5061.0000 444.0000
5870.0000 438.5000
6728.0000 436.0000
7627.0000 432.5000
8451.0000 426.0000
9297.0000 422.5000
|
| Elements | 16 + 16 | |
| Gain | 14.36 dBd / 16.5 dBi | |
| F/B Ratio | 30 dB | |
| -3 db angle on E - H planes | 28.8° - 30.5° | |
| Spacing on E - H planes | 4.17 - 3.95 m | |
| S.W.R. | 1:1.2 | |
| Boom lenght | 9.45 m - 4.48 lambda | |
| Boom diameter | 25 - 30 - 35 - 30 - 25 | |
| Elements diameter | 5 | |
| Dipole | T-match | |
| Connector | "N" precision | |
| Balun | RG 142 | |
| Max power | 1000 W | |
| Pole diameter | max 75 mm Ø | |
| Weight | 9 Kg | |
| Wind Area | 0,416 m² | |

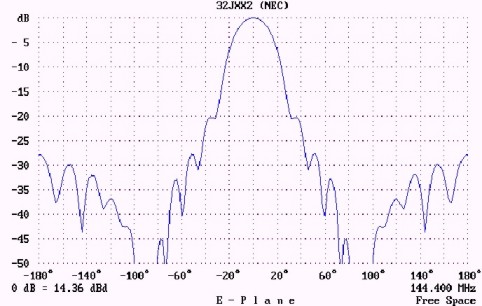

Vertical plane radiation plots
Horizontal plane radiation plots
Gain, SWR, Front/Back ratio, Impedance
